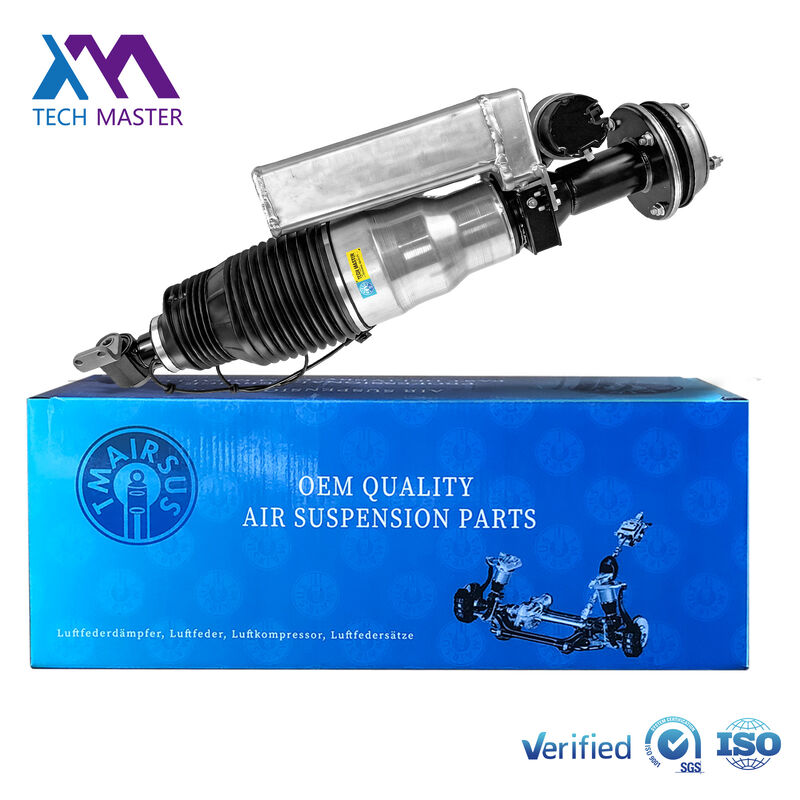

Car Shock Absorbers Front Air Suspension Struts for W240 Maybach 62 57 2403200913 2403201013 Air Strut Assembly
جزئیات محصول:
| محل منبع: | گوانگژو، چین |
| نام تجاری: | Tech Master |
| گواهی: | ISO9001 |
| شماره مدل: | 2403200913 2403201013 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 عدد |
|---|---|
| قیمت: | $10-$210/pc, EXW Guangzhou |
| جزئیات بسته بندی: | بسته بندی خنثی یا بسته برند اصلی فناوری یا طراحی مشتریان |
| زمان تحویل: | 7 روز |
| شرایط پرداخت: | TT.Paypal.Trade Assurance. RMB |
| قابلیت ارائه: | 8000 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| Brand name: | Tech Master | طبقه بندی کردن: | سیستم تعلیق کمک فنر |
|---|---|---|---|
| مدل ماشین: | برای مرسدس W240 Maybach 62 57، 2003-2012 | موقعیت مونتاژ: | جلو چپ راست |
| گارانتی: | 18 ماه | بسته ها: | بسته بندی خنثی یا درخواست مشتری |
| گواهی: | ISO9001 | نوع فنری: | کمک فنر خودرو بند تعلیق بادی جلو برای مرسدس W240 |
| برجسته کردن: | Maybach 62 front air suspension struts,W240 air shock absorber assembly,Maybach 57 air struts with warranty |
||
توضیحات محصول
Product Overview
Premium front air suspension struts designed for Mercedes-Maybach W240 models (57/62, 2002-2012), providing superior damping performance and luxurious ride comfort.
Technical Specifications
| Category | Specification |
|---|---|
| OE Part Number | Front Left: 2403201913, 2403200913 Front Right: 2403202013, 2403201013 |
| Position | Front Left / Front Right |
| Product Type | Airmatic Air Suspension Strut with hydraulic damping |
| Compatible Vehicles | Mercedes-Maybach W240 (57 / 62, 2002-2012) |
| Interchangeable Part Numbers | 2403202013, 2403201013 |
| Main Material | Aluminum housing, multi-layer rubber air spring, steel components |
| Working Pressure | 0.8-1.2 MPa |
| Stroke | 120±5 mm |
| Operating Temperature | -40°C to +120°C |
| Electronic Configuration | Built-in ADS connector, compatible with Airmatic suspension system |
| Warranty | 18 months or 80,000 km (whichever comes first) |
| Certifications | IATF 16949, ISO 9001 |
| Quality Inspection | 100% airtight test; 24-hour leakage test ≤ 0.02 MPa |
Key Features & Benefits
- Performance: Delivers ultra-smooth damping and luxurious riding comfort; supports precise vehicle height adjustment
- Durability: High-grade aluminum shell and reinforced rubber bladder, anti-aging and crack-resistant for long service life
- Sealing Performance: Undergoes strict leakage tests, maintains stable air pressure under various working conditions
- Compatibility: Direct OEM replacement, fully matches original ADS electronic system, no extra modification required
- Environmental Adaptability: Wide temperature resistance range, stable operation in extremely cold and hot areas
- Cost & Quality: Premium quality with competitive pricing, complete warranty provided
Vehicle Compatibility
Mercedes-Benz Models
| Model | Part Numbers |
|---|---|
| W230 | 2303200438, 2303200338, 2303208613, 2303208513 |
| W251 | 2513201931, 2513200025, 2513203013, 2513203113 |
| W164 | 1643206013, 1643206113, 1643204613, 1643200625 |
| W220 (4 Matic) | 2203202238, 2203202138 |
| W220 | 2203202438, 2203205013, 223205113, 2203202438 |
| W221 (4 Matic) | 2213200438, 2213200538 |
| W221 | 2213205613, 2213205513, 221204913, 2203205113 |
| W211 Front | 2113206113, 2113206013, 2113209313, 2113209413 |
| W211 Rear | 2113200725, 2113200825, 2113201525, 2113201625 |
| W212 Rear | 2123203925, 2123204025, 2123200725, 2123200825 |
BMW Models
| Model | Part Numbers |
|---|---|
| F01 F02 | 37126791675, 37126791676, 37126796929, 37126796930 |
| E66 (with ADS) | 37126785535, 37126785536 |
| E65 E66 | 37126785537, 37126785538 |
| X5 E53 Front | 37116757501, 37116757502, 37116761443, 37116761444 |
| X5 E53 Rear | 37126750355, 37126750356, 37121095579, 37121095580 |
| E39 | 37121094614, 37121095082 |
| X5 F15 X6 F16 | 37126795013, 37126795014 |
| E60 E61 | 37126765602, 37126765603 |
| E70 E71 E72 | 37126790078, 37126790081, 37126790082, 37126790083 |
Range Rover Models
| Model | Part Numbers |
|---|---|
| Range Rover | RNB000740G, RNB000750G, RNB501520, RNB501530 |
| Range Rover Sport | LR019993, LR052866, LR032647, LR018190, LR018172, LR018376 |
| Discovery 3 | RNB501320, RNB500493, LR016415, LR016414, LR016416 |
| Range Rover HSE | LR032567, LR012885, LR032570, LR032560, LR012859, LR032563 |
| Range Rover Sport, Discovery 3 | RNB501580, RNB501180, RTD501090, RDP500433, RDP500434 |
| Range Rover; Range Rover Sport | LR060137, LR072460, LR038813 |
Audi & Volkswagen Models
| Model | Part Numbers |
|---|---|
| A6 C5 Front | 4Z7413031A, 4Z7616051D/B, 4Z7698507 |
| A6 C5 Rear | 4Z7616051A, 4Z7513031A, 4Z7616019A, 4Z7616052A, 4Z7513032A, 4Z7616020A |
| A6 4F C6 AVANT | 4F0616039AA, 4F0616040AA, 4F0616039, 4F0616040 |
| A6 C6 4F Rear | 4F0616001, 4F0616001J |
| Q7 (Front) | 7L6616039D, 7L6616040D |
| Q7 (Rear) | 7L5616019D, 7L5616020D |
| Q7 (Front) | 7P6616039N, 7P6616040N |
| A8 | 4E0616039AF, 4E0616040AF, 4E0616039T, 4E0616040T |
| A8 D4 | 4H0616039AD, 4H0616040AD |
| Phaeton (Front) | 3D0616039D, 3D0616040D, 3D0616001J, 3D0616002J |
Company Exhibition
Packaging & Distribution
Dubai Warehouse Service
We maintain a warehouse in Dubai to provide local service to our customers. Customers can conveniently pick up items directly from our Dubai warehouse location.
Additional Product Details:
Material: Premium quality iron
Quality: OEM quality
Certificate: ISO 12100:2010
Inspection: 100% check before shipping
MOQ: 1pc
Delivery Time: 2-4 days for small quantity
Warranty: 18 months within 80,000 kilometers driving
Car Model: Mercedes-Benz 4Matic EDC W213-E Class 2016-2020
Material: Premium quality iron
Quality: OEM quality
Certificate: ISO 12100:2010
Inspection: 100% check before shipping
MOQ: 1pc
Delivery Time: 2-4 days for small quantity
Warranty: 18 months within 80,000 kilometers driving
Car Model: Mercedes-Benz 4Matic EDC W213-E Class 2016-2020
می خواهید اطلاعات بیشتری در مورد این محصول بدانید
